Product Overview

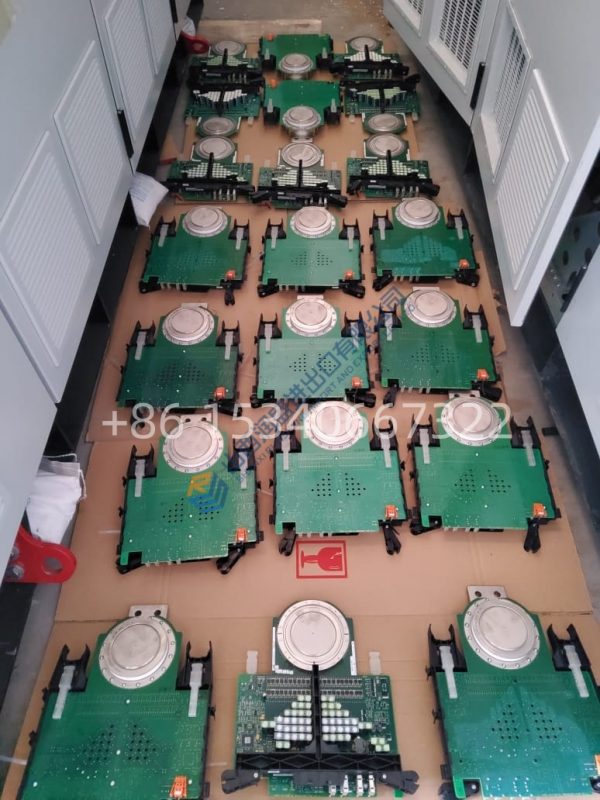

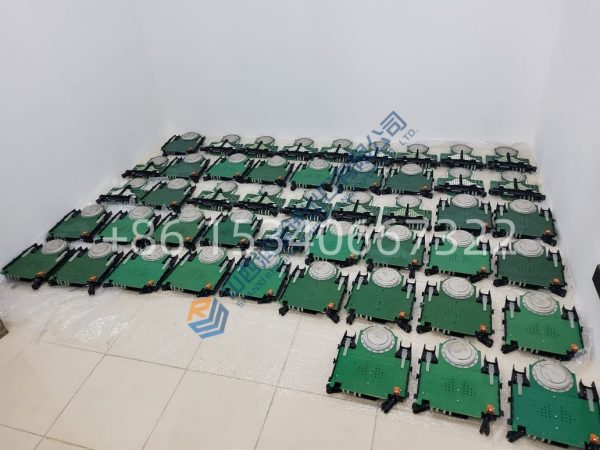

The ABB 3BHB030310R0001 is an advanced Integrated Gate-Commutated Thyristor (IGCT) module, also commonly identified with the type designation 5SHY4045L0006. This high-performance power semiconductor device is a cornerstone of modern power electronics, meticulously engineered by ABB to deliver unparalleled efficiency, reliability, and robust control in demanding high-voltage, high-current industrial applications. The 3BHB030310R0001 effectively merges the low conduction losses characteristic of a thyristor with the fast, controllable switching behavior of a transistor. This unique combination allows the 3BHB030310R0001 to achieve superior performance in large-scale power conversion systems, such as industrial motor drives, high-voltage direct current (HVDC) transmission, and static var compensators. With its integrated gate driver, the ABB 3BHB030310R0001 minimizes parasitic inductance and simplifies system design, while offering comprehensive integrated protection against various electrical faults. Its modular design and robust construction ensure seamless integration and long-term stability in harsh industrial environments, establishing the 3BHB030310R0001 as a vital component for next-generation, high-efficiency power converters and industrial automation solutions.
Technical Specifications
Main Features and Advantages
The ABB 3BHB030310R0001, also known as 5SHY4045L0006, is a state-of-the-art IGCT module that offers significant features and advantages for high-power applications. Its primary strength lies in the advanced Integrated Gate-Commutated Thyristor (IGCT) technology, which significantly improves turn-off performance and enables faster switching speeds than traditional thyristors. This results in reduced switching losses and higher overall system efficiency, leading to substantial energy savings in demanding industrial environments.
High Power and Voltage Capability: The 3BHB030310R0001 is designed to handle high voltages, specifically rated at 4500V, and manage substantial currents. This makes it an ideal choice for large-scale power electronics applications that require robust and reliable operation under extreme electrical conditions. The low on-state voltage drop further enhances its efficiency by minimizing power dissipation during current conduction.
Integrated Gate Drive and Robustness: A key advantage of the ABB 3BHB030310R0001 is its integrated gate drive unit, which reduces parasitic inductance and simplifies the overall converter design. This integration contributes to the module’s exceptional reliability and robust operation. The 3BHB030310R0001 also features integrated protection mechanisms against over-current, over-voltage, short-circuit, and thermal excursions, which significantly extends its operational lifespan and enhances system safety.
Optimized Thermal Performance: The module’s optimized packaging design ensures excellent heat dissipation, supporting long-term stable operation even under high thermal loads. This is crucial for maintaining performance and reliability in continuous-duty applications. The compact and modular design of the 3BHB030310R0001 also facilitates easier installation and maintenance, reducing downtime and improving system availability. Its ability to support high-frequency applications, extending into the kHz range, provides greater flexibility in system design for improved dynamic response and power quality.
Application Field
The ABB 3BHB030310R0001 (also known as 5SHY4045L0006) IGCT module is a crucial component across various high-power industrial and energy sectors, where efficiency, reliability, and precise control of large electrical currents and voltages are paramount. Its unique characteristics make it indispensable for mission-critical applications.
Industrial Drives and Motor Control: The 3BHB030310R0001 is extensively utilized in medium and high-voltage frequency converters for large industrial motor drives. These include applications in rolling mills, mining hoists, pumps, and fans, where precise speed and torque control are essential for optimizing production processes and achieving significant energy savings. The high switching capabilities of the 3BHB030310R0001 ensure dynamic response and efficient operation of these powerful motors.
Power Transmission and Distribution: In the energy infrastructure, the ABB 3BHB030310R0001 plays a pivotal role in high-voltage direct current (HVDC) transmission systems and Flexible AC Transmission Systems (FACTS) such as Static Var Compensators (SVCs) and Static Synchronous Compensators (STATCOMs). These systems rely on the module’s high voltage handling and rapid switching to stabilize grids, improve power quality, and enable efficient, long-distance power transfer, integrating renewable energy sources effectively.
Renewable Energy Integration: The 3BHB030310R0001 is a core component in power converters for renewable energy applications, including large-scale wind turbine converters and central photovoltaic inverters. Its high efficiency maximizes energy capture, while its robust design ensures reliable operation in the often harsh and variable environmental conditions of renewable energy installations.
Specialized High-Power Systems: Beyond these core areas, the ABB 3BHB030310R0001 is also applied in electric traction systems for rail transport, marine propulsion systems, metallurgical furnaces, and large-scale power energy storage solutions (PCS). Its versatility and proven reliability make it a preferred choice for any application demanding high-performance power semiconductor switching.
Installation and Maintenance
Pre-installation preparation: Before proceeding with the installation of the ABB 3BHB030310R0001 IGCT module, it is paramount to ensure that all associated power systems are completely de-energized and properly secured through lockout/tagout procedures to prevent any accidental power-up. Strict adherence to electrostatic discharge (ESD) precautions is critical, meaning the 3BHB030310R0001 should be handled only by its edges while wearing appropriate ESD-protective gear. The mating surface of the heat sink must be meticulously cleaned and verified to be perfectly flat and smooth, free from any particles or scratches, to guarantee optimal thermal contact. A high-quality thermal interface material (TIM) should be applied evenly to the contact area of the 3BHB030310R0001 to maximize heat transfer efficiency. Crucially, the specified mounting pressure for the 3BHB030310R0001 must be applied precisely using a calibrated torque wrench, as incorrect pressure can compromise both thermal performance and the mechanical integrity of the module. All electrical connections to the 3BHB030310R0001, including power terminals and gate drive connections, must be clean, tight, and torqued to the manufacturer’s specifications to prevent arcing or signal degradation.
Maintenance recommendations: For the ABB 3BHB030310R0001, maintenance primarily focuses on ensuring optimal thermal management and physical integrity. Regularly inspect the cooling system components—such as fans, heat sinks, and, if applicable, liquid cooling lines—for any accumulation of dust, debris, or signs of leakage. Impaired cooling can lead to elevated operating temperatures for the 3BHB030310R0001, significantly reducing its efficiency and lifespan. Clean the module and its cooling surfaces periodically using compressed air, taking care not to damage any sensitive components. Verify the tightness of all electrical connections and mounting hardware associated with the 3BHB030310R0001 to prevent localized overheating from loose contacts. For critical applications, continuous monitoring of key operational parameters like module temperature and current waveforms can provide early indications of potential issues with the 3BHB030310R0001, allowing for proactive troubleshooting and scheduled maintenance, thereby maximizing system uptime and reliability.
Product Guarantee
We are committed to the exceptional quality and reliability of the ABB 3BHB030310R0001 IGCT module, backed by a robust product guarantee that underscores our dedication to customer satisfaction. Every 3BHB030310R0001 undergoes stringent manufacturing processes and comprehensive quality assurance testing to meet the highest global standards set by ABB. This rigorous scrutiny ensures that the 3BHB030310R0001 delivers consistent performance and unparalleled durability in the most demanding industrial environments. Our standard warranty for the 3BHB030310R0001 covers defects in materials and workmanship, providing you with confidence and peace of mind in your critical power electronics applications. Beyond the warranty period, we offer dedicated after-sales service and expert technical support. Our highly skilled technical team is available to provide comprehensive assistance, including installation guidance, troubleshooting, and in-depth application support for the 3BHB030310R0001. Our goal is to ensure minimal downtime and optimized long-term performance of your systems that integrate the ABB 3BHB030310R0001, ensuring you realize maximum value and continuous, reliable operation.
