Technical Architecture & Functional Positioning

(~450 words)

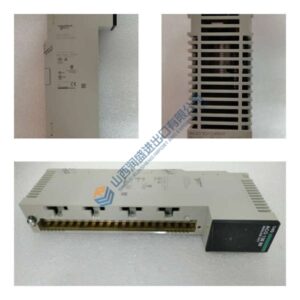

The F7126-E is positioned within the output layer of the HIQuad and HIQuad-X safety system architecture, responsible for actuating field shutdown devices such as solenoids, relays, contactors, and trip mechanisms. In a typical safety-instrumented system, this module serves as the final switching element that converts controller logic into deterministic field actions. Its design ensures that even in the presence of wiring faults or partial hardware failures, the output channels transition into a verified safe state.

Internally, the module uses a multi-layered fail-safe architecture combining isolated driver stages, redundant switching circuits, and continuous feedback paths. Each output channel features galvanic isolation, minimizing crosstalk and improving fault localization. The module’s diagnostic depth is one of its core advantages. Every output transition is validated against hardware feedback, enabling detection of stuck-on, stuck-off, or undefined states. This diagnostic detail is communicated via the HIQuad backplane, allowing the main controller to initiate safe shutdowns if anomalies arise.

From an engineering perspective, the module addresses several reliability challenges commonly encountered in process safety systems. Its line-monitoring technology identifies short circuits and open circuits in field wiring—two of the most common causes of output failures. By isolating each channel independently, the F7126-E eliminates single-point failures that might otherwise affect multiple outputs. The module’s deterministic behavior ensures that switching delays remain predictable even under full system load, which is essential for coordinated trip logic in systems such as ESD or BMS.

Because digital outputs are frequently exposed to inductive loads, the F7126-E includes protection mechanisms to handle transient spikes and reverse currents. This significantly extends the life of the module and stabilizes performance in environments where actuators can cause electrical stress. As a result, the F7126-E plays a critical role in ensuring that the safety system reliably enforces shutdown sequences and protective interlocks.
