Installation, Maintenance, and Full-Cycle Support

The PCS6000 PRODUCT FAMILY is engineered for streamlined installation and minimal maintenance requirements, translating into reduced total cost of ownership. Its modular design allows for pre-assembly and factory testing, significantly reducing on-site installation time. Whether integrated into a tower base, nacelle, or a standalone containerized solution, the compact footprint and optimized design of the PCS6000 PRODUCT FAMILY facilitate easier deployment even in confined spaces. Its liquid cooling system ensures efficient heat dissipation and stable operation under varying ambient temperatures, contributing to component longevity.

Maintenance for the PCS6000 PRODUCT FAMILY is designed for efficiency. Its low parts count and fuseless design significantly reduce the need for routine component replacements and on-site visits after minor disturbances, allowing for remote restarts. Diagnostic tools and remote service capabilities enable proactive monitoring and rapid troubleshooting. Our company provides comprehensive technical documentation, specialized training programs for your personnel, and a dedicated team of field service engineers ready to support installation, commissioning, and any necessary interventions.

We stand by the PCS6000 PRODUCT FAMILY with a full-cycle support commitment, offering tailored service agreements that include preventative maintenance, spare parts availability, and expert technical assistance throughout the product’s operational life. Our global service network ensures prompt and reliable support, maximizing the availability and performance of your critical power infrastructure.

Contact us for a customized solution that leverages the advanced capabilities of the ABB PCS6000 PRODUCT FAMILY to revolutionize your power conversion and grid integration challenges.

Add to Quote
Category:
  • Email:sales@sxrunsheng.cn
  • Phone:+86 15340667322
  • Whatsapp：+86 15340667322

    • Description

    Product Description

    The PCS6000 PRODUCT FAMILY from ABB represents a comprehensive suite of advanced medium-voltage power converters, engineered to provide highly efficient, reliable, and flexible solutions for demanding industrial and utility applications. Utilizing cutting-edge IGCT (Integrated Gate Commutated Thyristor) technology and a modular design, the PCS6000 PRODUCT FAMILY delivers exceptional power conversion capabilities, enabling precise control, superior power quality, and enhanced grid integration across a wide range of industries.

    Application Scenarios

    Consider the burgeoning offshore wind energy sector, where massive wind turbines generate megawatts of power in harsh marine environments, demanding robust and efficient power conversion to integrate smoothly with the grid. A leading global energy company embarking on the Dogger Bank Wind Farm project, one of the world’s largest offshore wind farms, selected the ABB PCS6000 PRODUCT FAMILY medium-voltage converters for their GE Haliade-X wind turbines. The challenge was to ensure not only maximum power extraction but also strict compliance with stringent grid codes and reliable operation under variable wind conditions and potential grid disturbances. By deploying the PCS6000 PRODUCT FAMILY, the wind farm achieved seamless conversion of generated energy into grid-compatible power, with advanced features like fault ride-through capabilities and dynamic reactive power control. This direct application of the PCS6000 PRODUCT FAMILY addressed critical pain points related to grid stability, energy efficiency, and operational reliability in large-scale renewable energy generation, contributing significantly to the reduction of carbon emissions and the transition to clean energy.

    Parameter

    Main Parameters Value/Description
    Product Model: PCS6000 PRODUCT FAMILY
    Manufacturer: ABB
    Product Category: Medium Voltage Power Converters (Full Power Converters, STATCOMs, SFCs)
    Topology: 3-level, 4-quadrant, VSI-NPC (Voltage Source Inverter – Neutral Point Clamped), Fuseless Design
    Semiconductor Technology: IGCT (Integrated Gate Commutated Thyristor)
    Power Range: Typically 4 MW to 15 MW for single converter units (up to 120 MVA for systems)
    Nominal Converter Voltage: 3.3 kV (with variations up to 6.9 kV and above for specific applications)
    Efficiency: Approx. >98% at rated point (contributes to significant energy savings)
    Cooling Method: Liquid cooling with closed-loop cooling unit (ensures stable operation at high power density)
    Environmental Adaptability: Operation from -10 to +50 °C (designed for demanding industrial and outdoor conditions)
    Grid Compliance: Meets international grid codes (e.g., UL 6141, CE, DNV-GL, CGC)
    Control Platform: Integrated with ABB AC 800PEC controller for fast and accurate control
    Key Features: Modular design, compact footprint, high availability, low parts count, active harmonic filtering

    Technical Principles and Innovative Values

    The PCS6000 PRODUCT FAMILY embodies ABB’s mastery in power electronics, delivering unparalleled value through several key innovations:

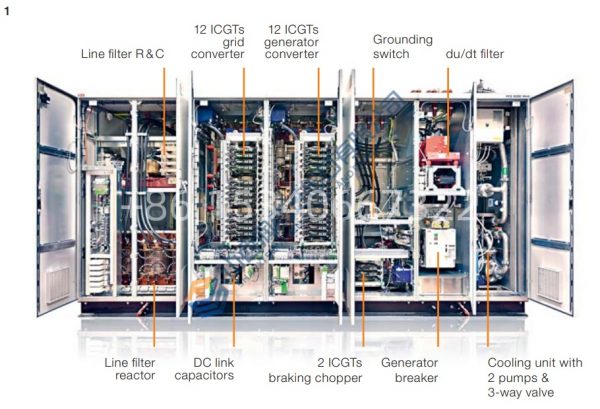

    • Innovation Point 1: Integrated IGCT Technology for Superior Performance: The core of the PCS6000 PRODUCT FAMILY lies in its utilization of ABB’s advanced Integrated Gate Commutated Thyristor (IGCT) technology. This fuses the low on-state losses of thyristors with the controllable turn-off capabilities of transistors, resulting in exceptionally high efficiency and power density. Compared to systems using traditional IGBTs, the IGCTs in the PCS6000 PRODUCT FAMILY offer lower switching losses and higher current capabilities, allowing for higher power ratings from a smaller footprint and significantly reducing operational costs over the system’s lifetime.
    • Innovation Point 2: Advanced 3-Level VSI-NPC Topology and Fuseless Design: The PCS6000 PRODUCT FAMILY employs a 3-level Voltage Source Inverter – Neutral Point Clamped (VSI-NPC) topology. This advanced architecture minimizes harmonic distortion and provides a near-sinusoidal output waveform, reducing stress on connected equipment and ensuring compliance with stringent grid codes without the need for large, external harmonic filters. Furthermore, its innovative fuseless design eliminates the need for on-site fuse replacements after disturbances, enabling remote restarts and drastically improving system availability and reducing maintenance efforts.
    • Innovation Point 3: Modular and Flexible Architecture: The modular design of the PCS6000 PRODUCT FAMILY allows for easy customization and scalability across various power ratings and application requirements. Standardized power electronic building blocks (PEBBs) simplify engineering, manufacturing, and maintenance. This flexibility enables deployment in diverse configurations, including tower base or nacelle installations for wind turbines, and containerized solutions for STATCOMs, making the PCS6000 PRODUCT FAMILY highly adaptable to unique project demands, thus lowering both capital expenditure and operational costs.

    PCS6000 PRODUCT FAMLIY ABB PCS6000 PRODUCT FAMLIY ABB

    Application Cases and Industry Value

    In a critical steel industry application, a large electric arc furnace (EAF) was causing severe voltage fluctuations and flicker on the utility grid, leading to penalties and potential disruptions to other industrial consumers. The utility company needed a solution to stabilize the grid and improve power quality. They implemented an ABB PCS6000 PRODUCT FAMILY STATCOM (Static Synchronous Compensator) solution. The PCS6000 PRODUCT FAMILY STATCOM, with its rapid reactive power compensation capabilities (dynamically absorbing or injecting reactive power), effectively mitigated the voltage flicker and stabilized the grid despite the highly dynamic load of the EAF. This led to a significant improvement in grid stability and power quality for all connected consumers, eliminating penalties for the steel plant and safeguarding the power supply for neighboring industries. The case exemplifies the PCS6000 PRODUCT FAMILY‘s vital contribution to industrial process stability, grid compliance, and overall economic benefit by ensuring a reliable and clean power supply.

    Related Product Combination Solutions

    The PCS6000 PRODUCT FAMILY seamlessly integrates with a range of ABB’s industrial automation and power electronics portfolio:

    • ABB AC 800PEC Controller: This high-performance controller forms the brain of the PCS6000 PRODUCT FAMILY, providing precise and rapid control algorithms for both generator and grid-side converters, optimizing energy capture and grid interaction.
    • ABB 3BHB030310R0001 (5SHY4045L0006) IGCT Module: These specific IGCTs are the workhorses within the power stack of the PCS6000 PRODUCT FAMILY, delivering the high current and voltage switching capabilities essential for high-power conversion.
    • ABB 3BHE055094R0002 GBU72: This Gate-Block Unit is specifically designed to provide the precise and isolated gate drive signals for the IGCTs within the PCS6000 PRODUCT FAMILY, ensuring optimal switching performance and protection.
    • ABB Medium Voltage Switchgear: Essential for connecting the PCS6000 PRODUCT FAMILY to the utility grid, providing reliable protection and isolation for the high-voltage connections.
    • ABB Transformers: Often paired with the PCS6000 PRODUCT FAMILY for voltage matching between the converter and the grid or generator, optimizing overall system performance.
    • ABB Drives (e.g., ACS6000 series): While the PCS6000 is a dedicated converter family, its power electronics platform shares commonalities with the ACS6000 drives, particularly in the use of high-power semiconductors and control philosophies.
