Description
Product Introduction

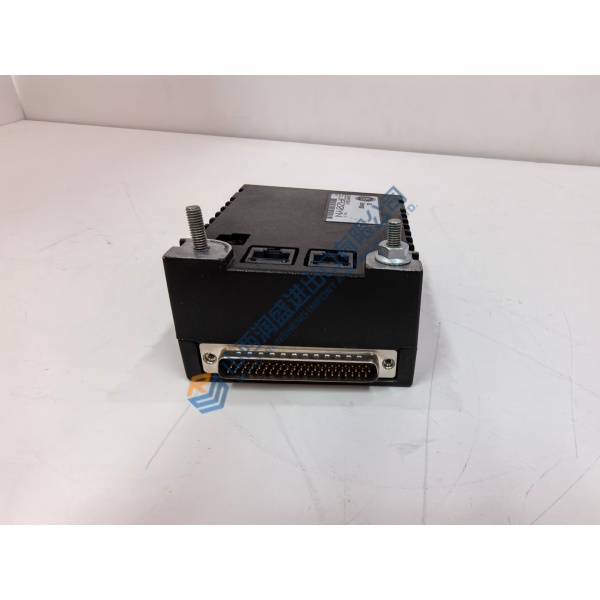

ABB PCD230 3BHE022291R0101 is a high-speed digital controller module engineered for ABB’s AC 800PEC power electronics control system. Designed for high-demanding applications like generator excitation, high-voltage DC (HVDC) transmission, and heavy industrial converters, the unit handles fast closed-loop control algorithms requiring microsecond cycle times.
This controller card integrates a powerful floating-point digital signal processor with high-density FPGA hardware logic, allowing direct interfacing with optical I/O channels. By converting field signals over fiber-optic links, this module eliminates ground loops and noise interference, delivering real-time control in high-power converter environments.
Standard Quality Control SOP
To guarantee operational integrity and reliability, every surplus module undergoes a rigorous five-stage quality control process before dispatch:
- Inbound Inspection: We verify origin documentation, packing lists, and unique serial numbers against known counterfeit markers. Engineers conduct detailed visual checks under magnification to ensure zero surface corrosion, physical scratches, or component damage.
- Live Functional Testing: The unit is mounted to a dedicated simulation test rig. We execute a full power-on self-test (POST), confirm communication handshakes, perform full-scale analog and digital I/O testing, and run a mandatory continuous load test exceeding 24 hours.
- Electrical Testing: We measure insulation resistance using a 500 V Megger to confirm readings exceed 10 MΩ. Grounding continuity checks are performed to ensure circuit protection specs meet factory baselines.
- Firmware Verification: Engineers read and document the installed firmware version (e.g., V3.1.2). Configured DIP switch states and jumper configurations are backed up and cataloged for traceability.
- Final QC & Packaging: The module receives an electrostatic discharge (ESD) anti-static vacuum seal, heavy-duty bubble wrap, and an official QC Passed label prior to boxed shipment.
Technical Pitfall Guide
- Firmware Rev Mismatch: The AC 800PEC platform relies on strict software-hardware alignment. Installing a replacement module with an incompatible firmware or FPGA boot image will cause system startup faults or bus communication failures in Control Builder M.
- DIP Switch / Jumper Errors: Hardware jumper positions set the subrack node address and optical link speeds. Take clear photographs of all jumper blocks on the legacy board prior to removal and match them on the replacement card.
- Terminal Wiring Incompatibility: The card utilizes sensitive fiber-optic transceivers for high-speed signal distribution. Bending fiber cables beyond their minimum bend radius or leaving dust caps off unassigned ports leads to high signal attenuation and intermittent communication dropouts.
- Power Supply Constraints: Ensure the 24 V DC system power supply maintains low ripple voltage. Power rail dips during sudden converter load changes can trigger processor watchdog resets.
- ESD Protection: The high-speed CMOS circuitry on this module is extremely sensitive to static electricity. Always wear a grounded anti-static wrist strap when removing or installing the card inside the subrack enclosure.
