Description
Verify exact firmware revision, sub-module configuration, and PCS6000 application compatibility with the OEM datasheet before installation.

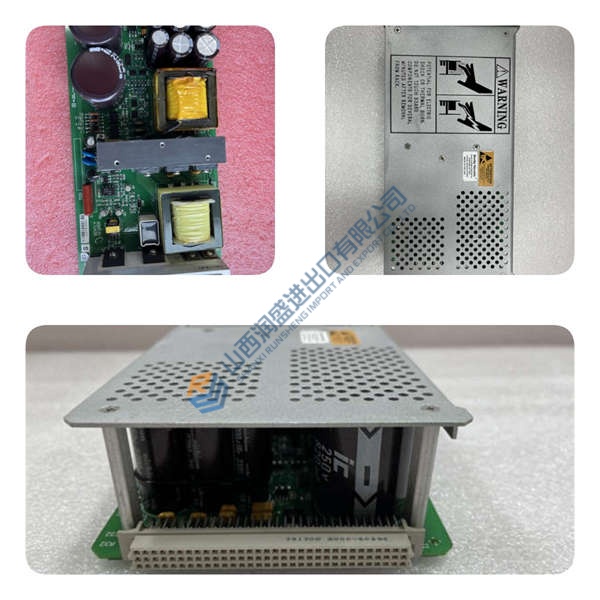

Turbine converter systems demand precise, low-latency control that standard platforms cannot deliver reliably. The ABB PPD113 B03-20-110611 functions as the AC 800PEC processor configured specifically for PCS6000 and similar high-power applications.
This B03-20 revision supports the fast inner loops required for turbine converters while integrating process logic and extensive optical I/O for noise-immune communication.
Key Selling Points & Differentiators
- Fast task execution down to 100 µs with support for up to 36 optical links in PCS6000 converter duty.
- Full live functional test on AC 800PEC rack: power-on self-check, optical comms handshake, I/O simulation, and 24-hour burn-in; test report and photos available.
- Handles combined high-speed control loops and standard logic in one controller, unlike AC 800M modules that reach cycle limits in turbine applications.
- Not recommended for basic low-speed process control — a standard PM8xx series provides adequate performance at lower cost.
- Suited to high-reliability power electronics environments per IEC 61131-3 (confirm your site standards).
- Transparent QC from incoming serial verification through final ESD packaging; this unit passed all functional checks at time of test.
Firmware Revision Mismatch Controller boots but control loops fail to run or generate errors. Record the exact firmware version and hardware details from the live unit before removal. Request the matching range and plan a download window if required.
DIP Switch / Jumper Misconfiguration ❗ Take clear photos of all switch and jumper positions before removing the old module. Incorrect settings on fiber links or CEX bus cause immediate communication faults.
Terminal Block / Cable Incompatibility Fiber connectors and AnyIO pinouts vary by revision. Check the wiring diagram; do not wire by memory. Shielding and grounding differences often introduce noise in converter cabinets.
Power Budget Differences Maintain ~20% headroom on the rack supply. A loaded PPD113 B03 configuration typically draws 5-15 W depending on modules — total rack consumption must stay within limits to prevent voltage drops under load.
ESD Handling Use a wrist strap and ESD mat every time. One technician damaged a board during a dry-season swap in a control room after skipping protection; the issue only appeared at next system startup.
Remember these and you’ll avoid most rework.
